Pump Periphery

The valve body is double sealed by metal and elastic material, and adopts axisymmetric design, so that the water flow breaking area in the valve cavity is always annular, shrinking to the shaft at the exit, avoiding throttling, eliminating cavitation and vibration on the pipe network. And damage to the pipeline. Ideally designed, the fluid is well guided inside the streamlined valve body. Even in the case of high pressure difference, the valve can effectively eliminate the high pressure difference, reduce the high pressure to low pressure, and will not cause vibration and cavitation. The continuous decreasing of the annular flow passage area from the inlet to the contraction section results in a gradual increase in the flow rate without cavitation and no energy conversion of cavitation damage. Whether the piston is in any position, the contraction section is circular, ensuring perfect linear adjustment.
Fluid medium: water, oil, gas, etc.
Applicable temperature: -20°C ~ 220°C
Applicable pressure: 6bar～64bar
Applicable size: 4"～80"

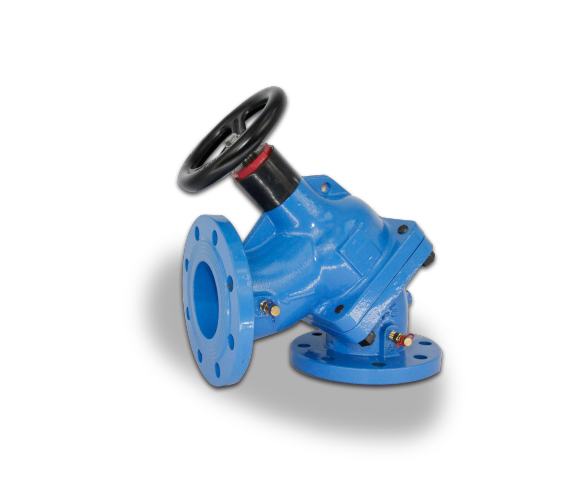

The multi-function control valve can perform more functions on the same valve body, for example, as an anechoic check valve, an on-off valve, a balance valve, and a measuring valve. The valve features a unique V-shaped seat that allows the valve to have good adjustability. The use of multi-function valves can reduce your installation time, reduce installation space, and save on procurement costs and labor costs.
Flange dimensions to EN1092-2, ANSI B16.1 Class 125
Medium: 0 °C ~ 100 °C water
Housing material: ductile iron / stainless steel, core rod: stainless steel, O-ring: EPDM
Working pressure: 175PSI, 10Bar/ 235PSI, 16Bar / 350PSI, 25Bar
Size range: 2"~20"

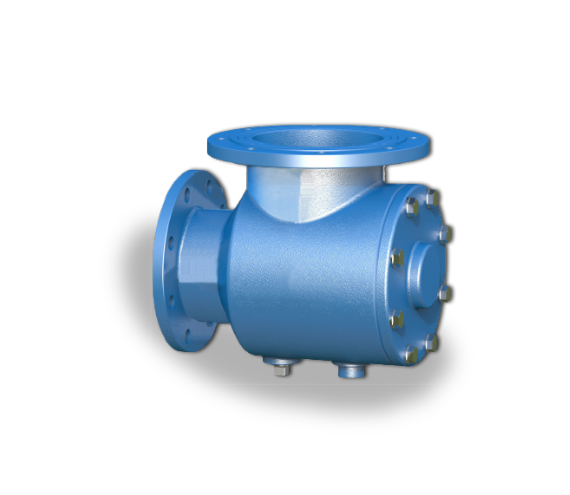

The pump diffuser combines filters, elbows, end suction stabilizers, etc., saving installation space and procurement costs. The built-in guide vane makes the fluid more stable, and the start protection filter is installed to prevent foreign matter from entering the pump. The filter has a larger flow area than the conventional filter, and the filter has an opening ratio of 63%.
Flange dimensions to EN1092-2, ANSI B16.1 Class 125
Medium: 0 °C ~ 100 °C water
Housing material: Ductile iron, Filter: Stainless steel, O-ring: EPDM
Working pressure: 175PSI, 10Bar/ 235PSI, 16Bar / 350PSI, 25Bar
Size range: 2"~20"
