Air Valves

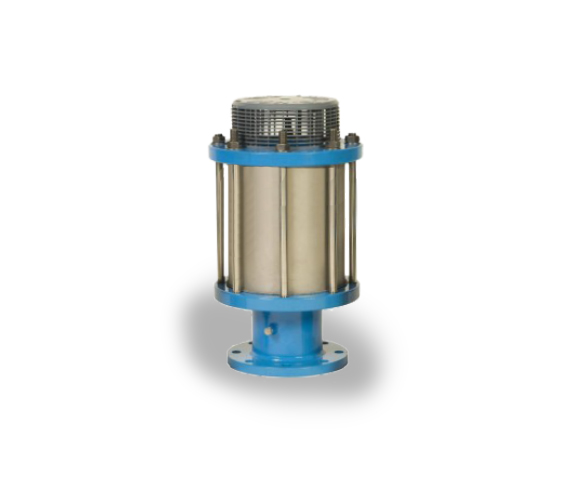

Chamber double function combination air valve with a built in anti-water hammer non slam surge prevention system.
Size range: 1"~16"
Working pressure: 10Bar~64Bar
Applicable medium: Water
Flange size: EN1092-2, ANSI B16.1
Body material: Cast steel, stainless steel
Float material: CF8

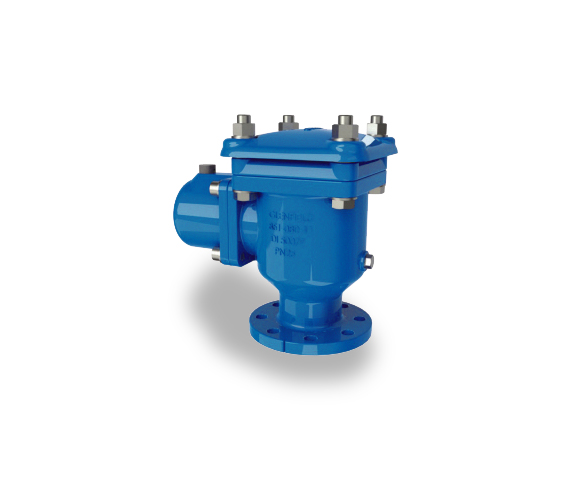

Can release/enter air in a large amount, with one large and one small two vents
Size range: 1 1/2"~12"
Working pressure: 10Bar~25Bar
Applicable medium: Water
Flange size: EN1092-2, ANSI B16.1
Body material: Ductile Iron
Float material: CF8

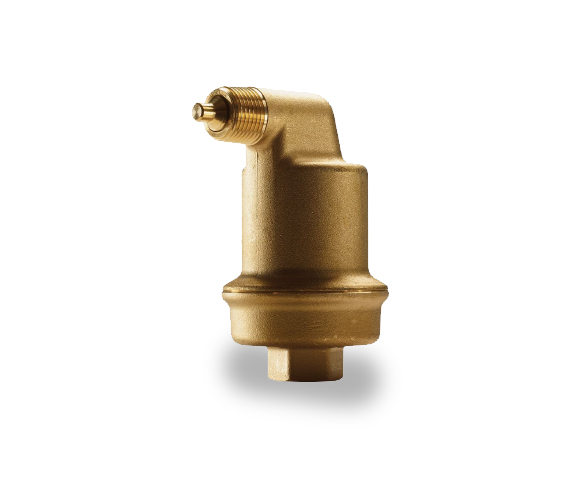

Exhaust end with threaded port for connection to exhaust pipe or check valve; large capacity air tank
Size range: 1/2", 3/4", 1"
Working pressure: 10Bar, 20Bar
Applicable medium: Water, glycol (max 50%)
Design standard: EN 13445
Body material: Brass, CF8
Float material: PP, TPX
